Square Hollow SHS Steel Tube Cross Section Galvanized S195 S235

Ask Lasest Price
Brand Name :	EDEST STEEL
Model Number :	S195,S235,S355JR,EN10219,Grade B
Certification :	ISO 9001 / ISO 18001 / ISO 14001 / CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000ton
Delivery Time :	3-5work days

Add to Cart

Product Details
Company Profile

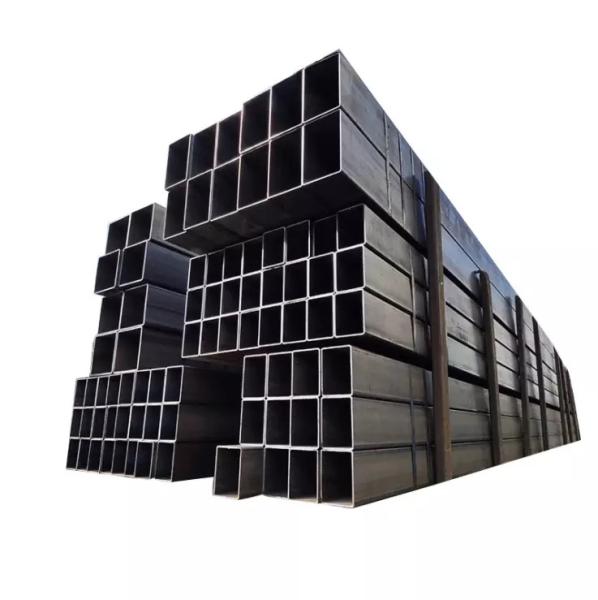

Square Hollow SHS Steel Tube Cross Section Galvanized S195 S235

Square Hollow Tube - SHS Steel Tube

ERW Rectangular Steel Tubes are available in a variety of sizes and wall thicknesses. The Rectangular Steel Tube range is quality assured through our stringent supplier selection process and is fully BS EN 10305-3/5 Grade E220 compliant.
SHS (Square Hollow Sections) Sizes:
Wide: 20*20mm-400*400mm
WT: 1.6mm-16.0mm
Square Hollow Tube - SHS Steel Tube Hollow Section Area Square Steel Tube Galvanized Square Tube Large Diameter Square Steel Tube Manufacturer

Product Name	Product Name
Product Name	Square pipe: 2020mm~500500mm Thickness: 1.2mm~20mm Length: 2.0m~12m
Material	Low carbon steel
Steel Grade	Q195 = S195 / A53 Grade A Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C
Standard	EN10219, EN10210 GB/T 6728 JIS G3466 ASTM A500, A36
Surface Anti-rusty Coating	pre-galvanized (Zinc coating: 40-80g/m2) hot dipped galvanized (Zinc coating: 200-600g/m2 )
Pipe Ends	Pipe Ends
Certificates	ISO 9001 / ISO 18001 / ISO 14001 / CE
Packing and Shipment	1. OD 300mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles 2. above OD 300mm in bulk or according to custom opinion 3. 25 tons/container and 5 tons/size for a trial order; 4. For 20" container the max length is 5.8m; 5. For 40" container the max length is 11.8m.
Usage	Construction / building materials steel pipe Structure steel pipe Solar structure component steel pipe Fence post steel pipe Greenhouse frame steel pipe
Trade terms	FOB, CFR, CIF, EXW, FCA
Payment terms	T/T, LC
Delivery time	15-45 days (based on quantity) after receiving advanced payment by T/T or LC .
Main market	Middle East, Europe, Middle&South America, Africa and Oceania

Galvanised Square Tube
Square Galvanized Mild Steel Welded Tube with a Zinc plated coating that provides a level of corrosion protection while having the ability to be painted or powder coated for aesthetic purposes. The steel tube range is quality assured through our rigorous supplier selection process and is supplied to you in full compliance to BS EN 10305-3/5 Grade E220.
Standard for hollow sections
Standard for hollow sections

ASTM A312	Stainless Steel Hollow Section
BS EN 10210	Hot Finished Structural Hollow Sections of Non-alloy and Fine Grain Steels
BS EN 10219	Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels
ASTM A500	Cold-Formed Welded and Seamless Carbon Steel Structural Tubing
ASTM A501	Hot-Formed Welded and Seamless Carbon Steel Structural Tubing
JIS G3466	Carbon Steel Square and Rectangular Tubes

Main Products	Size	Wall Thickness	Production Line	Producing Capacity
ERW steel pipe	1/2" -- 8"	1.5mm--10.0mm	13	1,000,000 tons per yesr
Hot-dipped galvanized steel pipe	1/2"-8"	1.5mm--10.0mm	18	1,500,000 tons per year
Oil casing pipe, SSAW steel pipe	219mm-2020mm	5.0mm--28mm	5	150,000 tons per year
Square/rectangular steel pipe	20x20--400x400mm,20x40--400x600mm	1.3mm--20mm	10	800,000 tons per year
Hot-dip galvanized square/rectangular steel pipe	20x20--200x200mm,20x40--250x150mm	1.5mm--7.5mm	3	250,000 tons per year
Steel-plastic complex steel pipe	1/2"--12"	1.5mm--10.0mm	9	100,000 tons per year

No.	Item	Description
1	Short Description	Cold rolled square steel pipes or cold rolled black annealed square tubes is made by the cold rolled sheets or coils, its name comes from the scaly, dark-colored iron oxide coating on its surface. It’s used in applications that don’t require galvanized steel.
2	Steel Grade	Q195, S195 etc.
3	Sizes	SHS10X10 to 100X100mm, RHS8X16 to 50X100mm
4	Thickness	0.35mm to 3.0mm
5	Yiled Strenth	195Mpa
6	Tenshile Strength	315-430Mpa
7	Length	5.8/6meters, or other fixed length as reqeusted
8	Surface treatment	anti-rust oil
9	Pipe Ends	pain ends.
10	Packing	Covered by plastic woven sheets, paced in bundles by steel strips, with slings both sides.
11	Transportation	by 20/40FT containers or by bulk vessels as per conditon
12	Origin	Tianjin, China
13	Mill Test Certificate	EN 10204/3.1B
14	Third party inspection	SGS/BV
15	Payment Term	TT, LC at sight, DP etc.
16	Application	furnitures, structural supports, steel frames, mechanical engineering,electricity etc.

Why choose us
01. Advanced equipment
Three square tube and three rectangular tube production lines adopt the most advanced equipment in China, with a workshop area of 30,000 square meters.
02. High-quality steel strip raw materials
We choose high-quality raw materials. Our base steel comes from domestic and other well-known brands.
03. Output
Square tube and rectangular tube, the monthly output is about 10,000-100,000 tons, and the inventory is sufficient.
04. Quality inspection
Strict quality inspection standards are implemented, and the products meet ISO and SGS international standards to ensure 100% compliance with customer requirements.
05. Fast delivery
Advanced production management process, from production to delivery, efficient and fast.
06. Sales service
We have professional sales staff in English, Spanish, Portuguese, French, Arabic and Russian, suitable for different markets.
